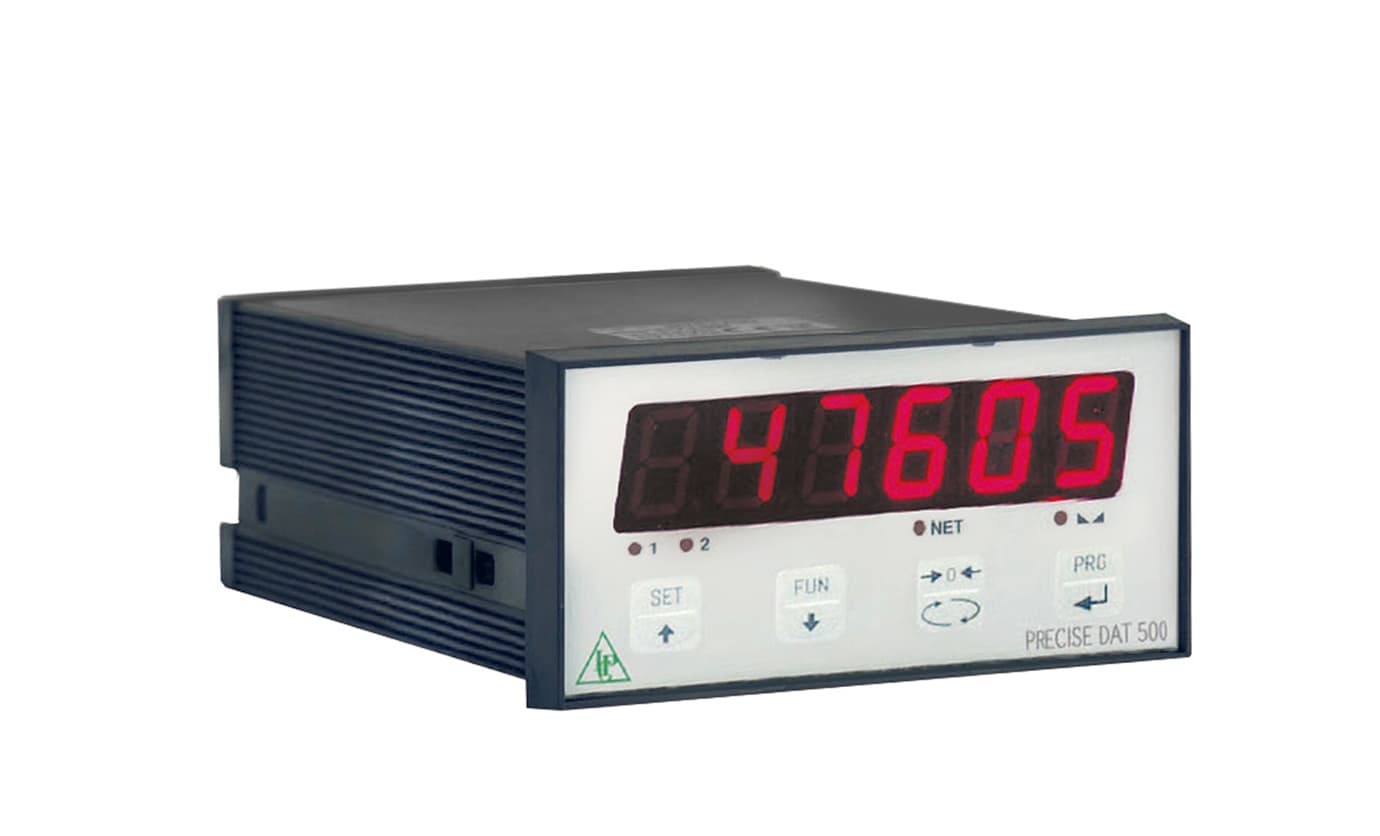

The DAT 500 Devicenet weight transmitter has high performance and reliability and It has the upload and download function for the programming with TESTER 1008. The DAT 500/DEVICENET can be connected through the external converter and the configuration and calibration can be set up from the front panel or from the PC with the Inovation ™ program (MS WINDOWS). The weight transmitter DAT 500 Devicenet has a Peak Hold function for dynamic weighings and screw terminal blocks. PWS: 13/2013
Technical Specifications in PDF
| Measuring range: -0.5 ÷ +3.5 mV/V (-3.9÷+3.9 mV/V optional) |
| Input sensitivity: 0.02 µV/count |
| Full scale non-Linearity: <0.01% |
| Gain drift: <0.001% FS/°C |
| Display: 6 digit, red LED (7 segments), h 14 mm |
| A/D Converter: 24 bit |
| Internal Resolution: > 16.000.000 points |
| Trasducer input voltage: 5 V (max 6 load cells 350 Ohm) |
| Visible resolution (in divisions): 60000 |
| Divisions value (adjustable): x1, x2, x5 |
| Decimal figures range: 0 ÷ 3 |
| Temperature range: -10 ÷ +50°C (max umidity 85% without condensation) |
| Storage temperature: -20 ÷ +70 °C |
| Filter: 0.1 ÷ 25 Hz |
| Logic output: 2 Solid-state relays, (maximum load 24 Vdc / 100 mA each) |
| Logic inputs: 2 optoisolated 24 Vcc PNP (External voltage) |
| Serial port: RS232C with ASCII or Modbus RTU protocols |
| Power supply: 24 Vcc ±15% - power 5 W |
| Regulatory compliance: EN61326-1, EN55011, EN55014 for EMC; EN61010-1 for electrical security |
| Fieldbus: Devicenet |
| Dimensions and weight: 96 x 48 x 120 mm (L x H x D); 250 g |
| Baud rate: 2400, 9600, 19200, 38400, 115200 adjustable |
| Transmission distance: 15m (RS232C) |
