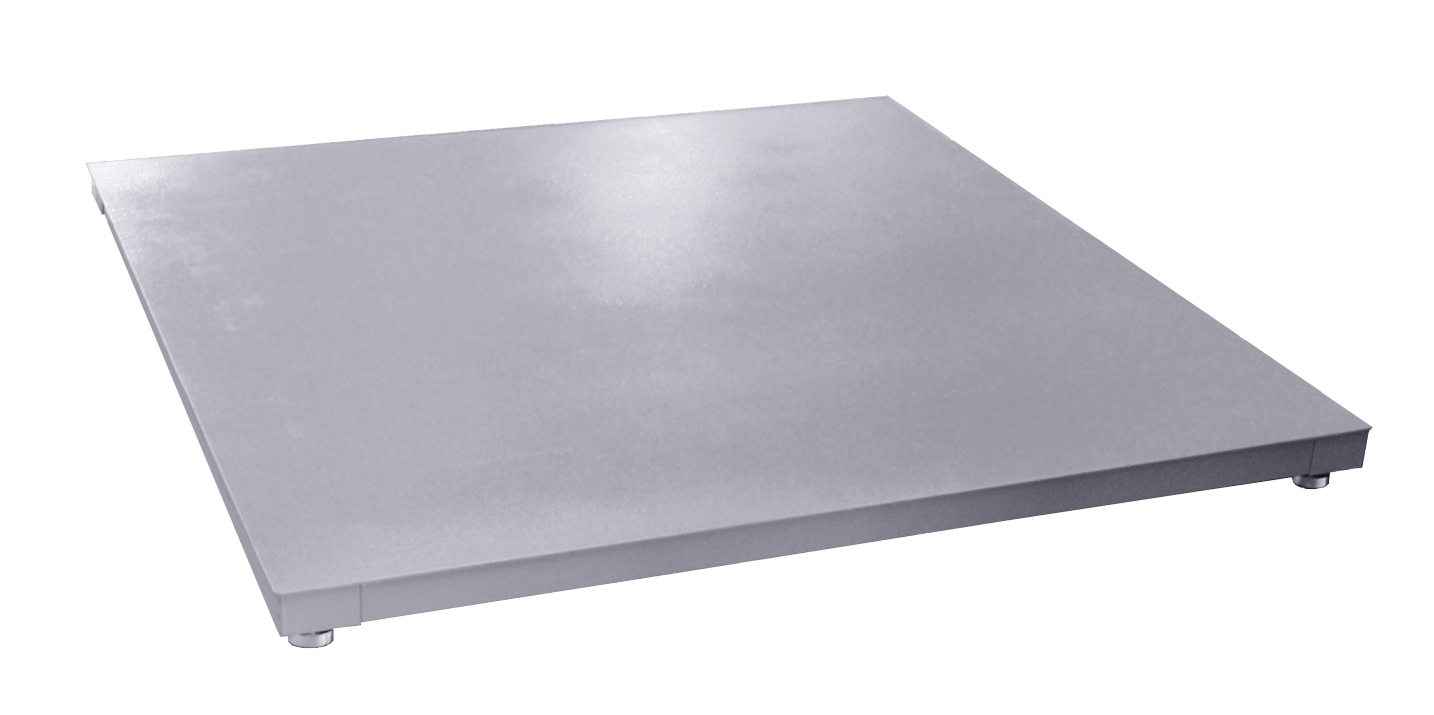

Four Cells PQM


The PQM platform is a 4-cell monoblock that supports the object to be weighed and transmits its load to the cells below, which measure it synchronously to return its precise value. The PQM weighing platform works like a huge, precise and robust scale. PQM is also available in stainless steel version and it is usually used in particularly aggressive environments, in food or pharmaceutical fields.

Further Information

Technical Specifications in PDF

PVS: 19/2017


Technical Specifications

Rated load (RL): 300 ÷ 3000 Kg
Combined error: 0.04 % RO
Safe overload: 150 % RL
Trasducer input voltage: 3 ÷ 15 Vdc
Rated output RO: 3 mV/V


  • ATEX
  • OIML
  • IECEx
