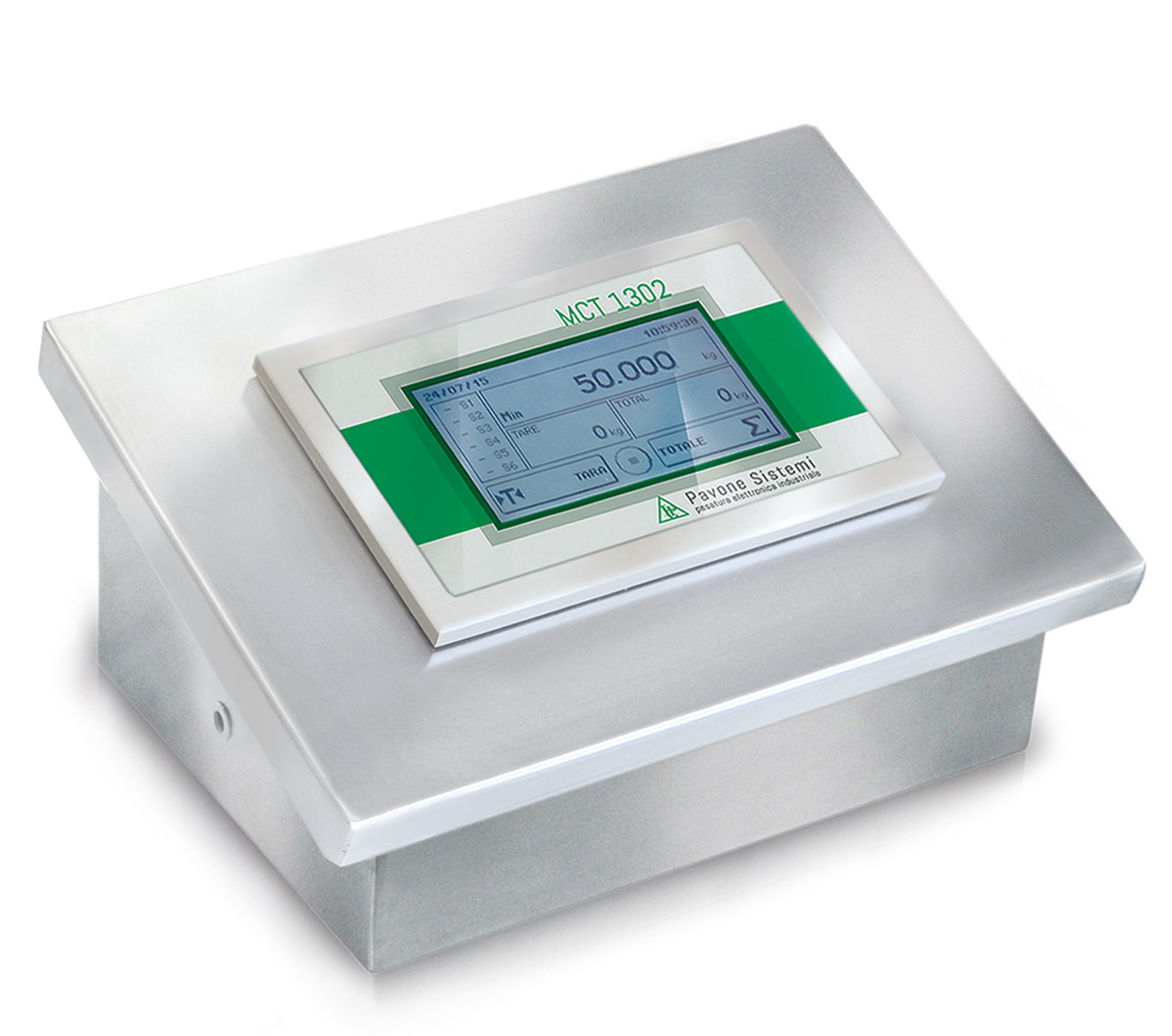

The MCT S 1302 atex and stainless steel is a touch screen weight indicator ideal for every type of weighing, in particular for static weighing and loading / unloading and multi-component weighing. It is easy to install and to use and it owns a multilingual menu. The MCT S 1302 product can be customized according to custmores' needs. PWS: 29/2018
Technical Specifications in PDF
| Legal for Trade: certification available on request |
| Measuring range: -3.9 ÷ +3.9 mV/V |
| Input sensitivity: 0.02 µV/count |
| Full scale non-Linearity: < 0.01 % |
| Gain drift: < 0.001 % full scale/°C |
| Display: graphic LCD (240x128 pixel) |
| A/D Converter: 24 bit; internal resolution up to 16.000.000 |
| Trasducer input voltage: 5 Vdc (max 8 load cells - 350 Ohm) |
| Frequency signal acquisition: 12 ÷ 1000 Hz |
| Visible resolution (in divisions): 999999 |
| Divisions value (adjustable): x1, x2, x5, x10, x20, x50; 4 decimal points |
| Temperature range: -10 ÷ +50°C (max umidity 85% without condensation) |
| Storage temperature: -20 ÷ +70°C |
| Filter: 0.1 ÷ 250 Hz |
| Logic output: 6 opto-isolated; max 24 Vdc/100mA each |
| Logic inputs: 6 optically isolated 24 Vdc PNP (external power supply) |
| Additional I/O: up to 4 external modules with 4 in/8-out each (16 in/32 out, total) by independent RS485 |
| Serial port: 1 USB device + 1 RS232C + 1 RS485/Fieldbus |
| Analog optional output: optoisolated 16-Bit Voltage: 0 ÷5/10 V (R min10 K Ohm), Current: 0/4 ÷ 20 mA (R max 300 Ohm) |
| Analog output Non-Linearity: < 0,02 % |
| Temperature drift analog output: 0,001 % FS/°C |
| Power supply: 18 ÷ 30 Vdc - Power consumption 5 W. Optional 115/230 Vac |
| Microcontroller: ARM Cortex M0 + 32 bit 256KB Flash reprogrammable onboard from USB |
| Data storage: 64 Kbytes expandable up to 1024 Kbytes |
| Regulatory compliance: EN61000-6-2, EN61000-6-3 for EMC; EN61010-1 for Electrical Safety, EN45501 for metrology |
| Fieldbus: Ethernet 10/100 with protocols TCP, MODUBUS/TCP, UDP, IP, ICMP, ARP; Profinet; Ethernet/IP; ETHERCAT |
