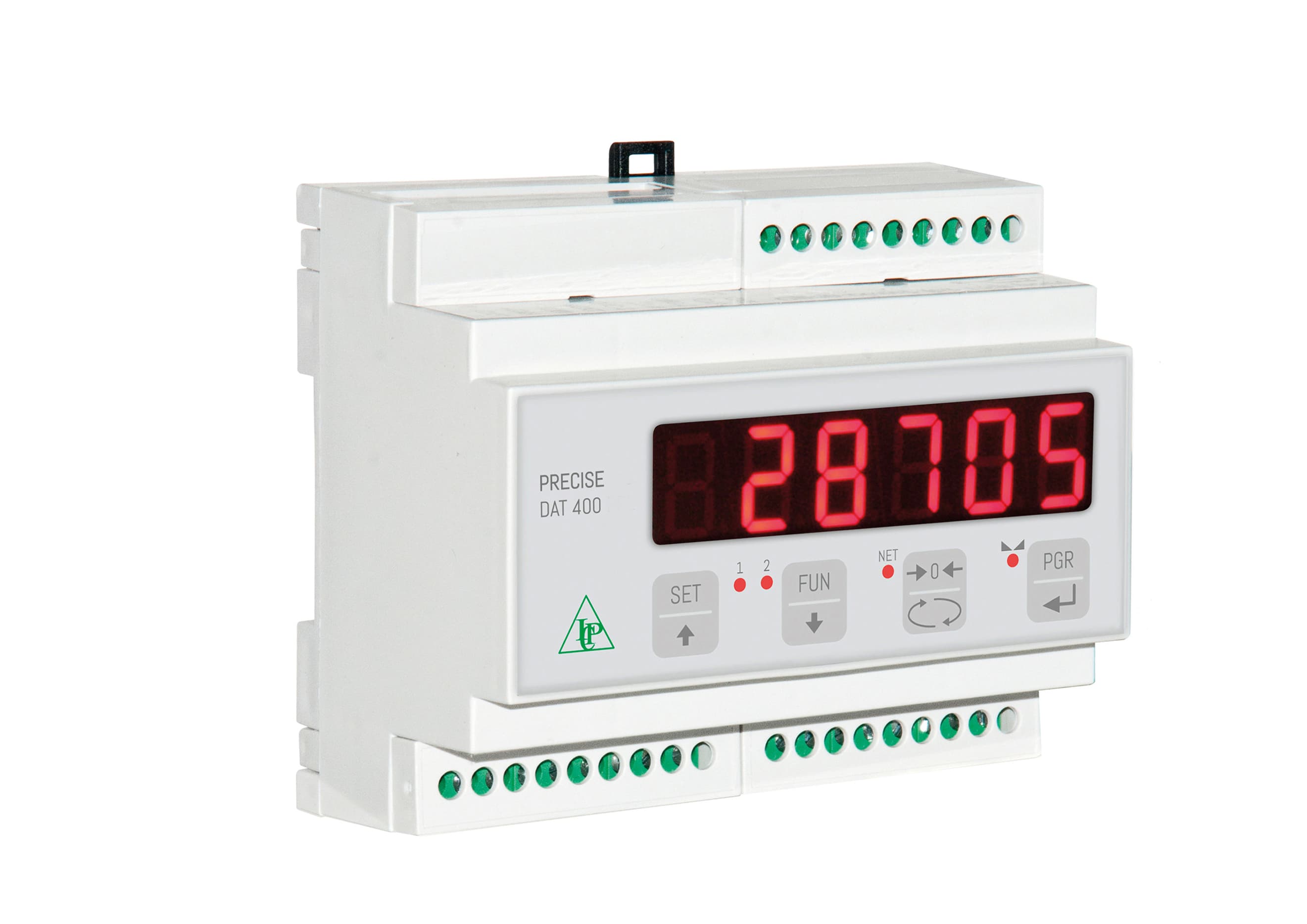

Weight Transmitter DAT 400 Profinet

DAT 400 Profinet

The DAT 400 Profinet weight transmitter is sold exclusively by Pavone Systems and it guarantees high performance and reliability. DAT 400 Profinet can be bought in combination with Tester 1008, which facilitates the upload and download functions for the programming. Configuration and calibration can be set up from the front panel or from a PC. The DAT 400 Profinet weight transmitter can be customized according to customer's needs. It has a peak hold function for dynamic measures and screw terminal blocks. PWS: 31/2015

Further Information

Technical Specifications in PDF

Watch our tutorial

Product code: PSDA0409

Technical Specifications

Measuring range: -0.5 ÷ +3.5 mV/V (-3.9 ÷ +3.9 mV/V optional)
Input sensitivity: 0.02 µV/count
Full scale non-Linearity: <0.01%
Gain drift: < 0.001% FS/°C
Display: 6 digit, red LED (7 segments), h 14 mm
A/D Converter: 24 bit
Internal Resolution: > 16.000.000 counts
Trasducer input voltage: 5 V (max 6 load cells 350 Ohm)
Visible resolution (in divisions): 60000
Divisions value (adjustable): x1, x2, x5
Decimal figures range: 0 ÷ 3
Temperature range: -10 ÷ +50°C (max umidity 85% without condensation)
Storage temperature: -20 ÷ +70 °C
Filter: 0.1 ÷ 25 Hz
Logic output: 2 Solid-state relays, (maximum load 24 Vdc / 100 mA each)
Logic input: 2 optoisolated 24 Vcc PNP (External voltage)
Serial port: USB, RS232C with ASCII or Modbus RTU protocols
Power supply: 24 Vcc ±15% - power 5 W
Regulatory compliance: EN61326-1, EN55011, EN55014 for EMC; EN61010-1 for electrical security
Fieldbus: Profinet
Dimensions and weight: 106 x 90 x 58 mm (L x H x P); 250 g
Baud rate: 2400, 9600, 19200, 38400, 115200 adjustable (for RS232)
Transmission distance: 15m (RS232C)

Certifications

  • UL
  • GOST
  • EAC
  • OIML
