Weight Indicator PSVIS HE 60

PSVIS HE 60

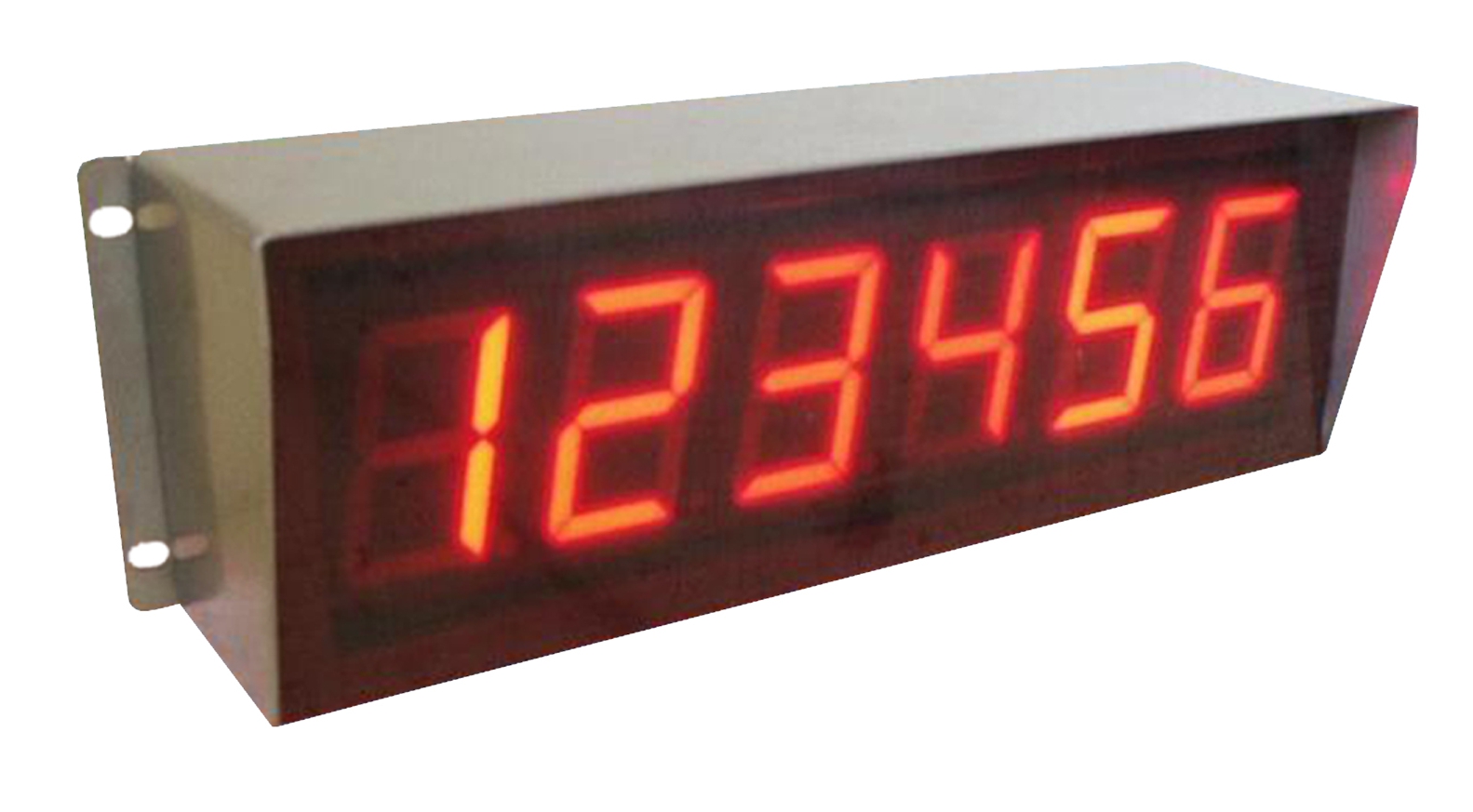

The weight indicator PSVIS HE 60 has an input for load cells, a 6-character numerical display, a stainless steel container and watertight connections. The configuration and calibration are set up by radio control.

Further Information

Technical Specifications in PDF

PVS: 41/2014

Download

Technical Specifications

Measuring range: -1.5 mV/V ÷ +3.5 mV/V
Full scale non-Linearity: <0.01%
Display: numerical to 6 digit to high efficiency and wide visual angle
Internal Resolution: 24 bit
Material: Stainless steel protected against dust
Frequency signal acquisition: 6 ÷ 25 Hz
Visible resolution (in divisions): > 60.000
Decimal figures range: 0 ÷ 3
Temperature range: -10°C ÷ +40°C (max humidity 85% without condesation)
Storage temperature: -20 ÷ +50°C
Filter: 0.2 Hz ÷ 25 Hz
Excitation voltage: 5 Vdc/120mA (max 350 Ohm 8 cells in parallel) short circuit protected
Logic output: 3 outputs
Serial port: RS232C/RS485; Ethernet (optional), Profibus (optional)
Power supply: 230 - Opz. 115 Vac 50/60 Hz - max absorption 15 VA
Regulatory compliance: EN61000-6-2, EN61000-6-3, EN61010-1
Dimensions: 346 mm x 118 mm x 98 mm (l x h x p)
Reading distance: up to 15 m
Temperature drift (analog input): < 0.001 % FS/C°
Temperature drift (load cell): < 0.0003 % FS/°C

Certifications

  • EAC
