BLH Nobel load cell DSA-R

DSA-R

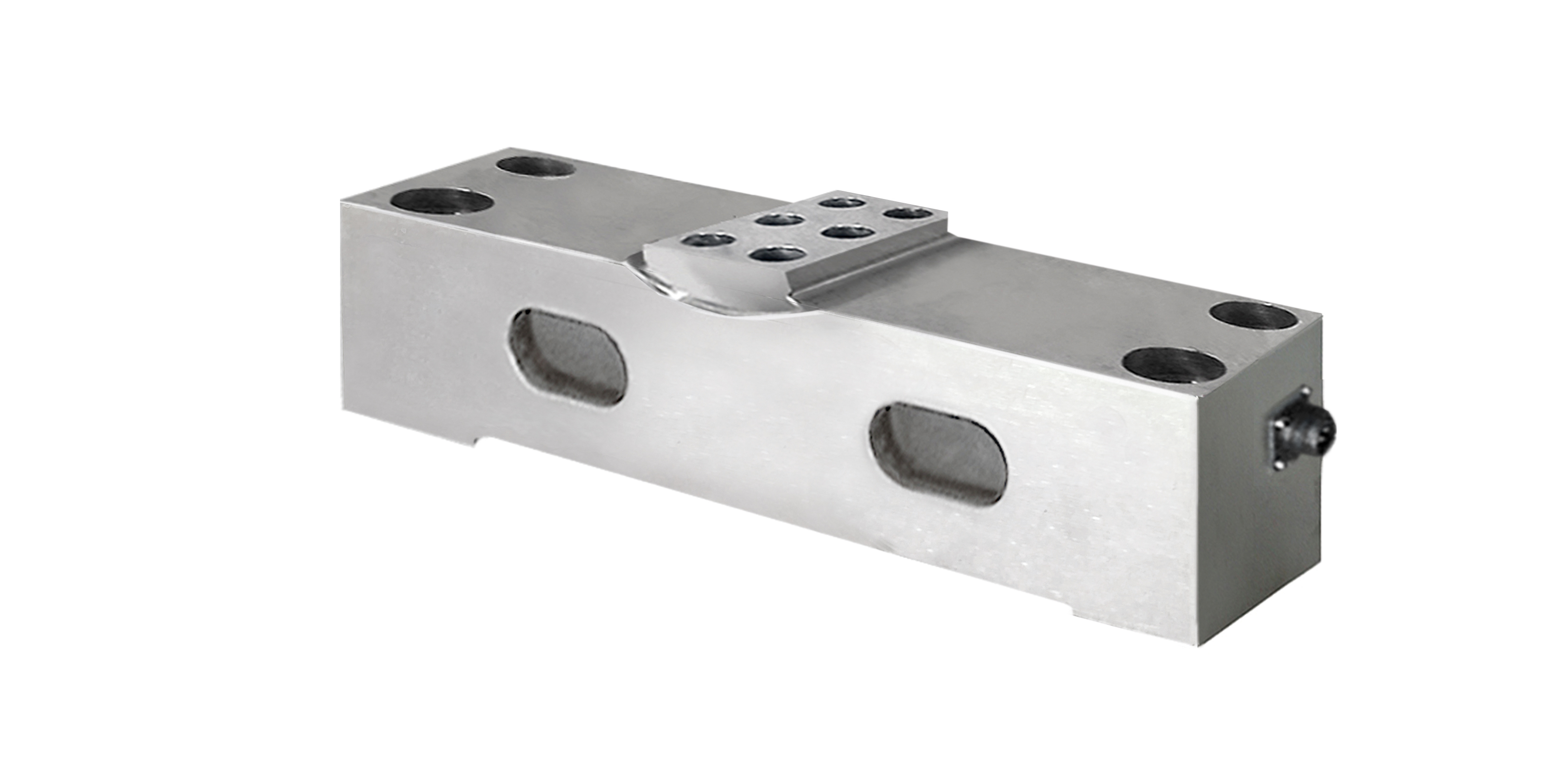

The BLH NOBEL DSA-R load cell is made of galvanized steel, it has a variable load capacity according to customers' needs and the temperature ranges from -40 ° C to + 150 ° C. It is also supplied with a special 15m cable directly connected to the load cell and an annex indicator which monitors the temperature by changing colour if it reaches extreme levels. The DSA-R load cell is perfectly suitable for weighing silos and hoppers and it is widely used in steelworks and foundries. PWS: 37/2014

Further Information

Technical Specifications in PDF

Product code: -_-

Download

Technical Specifications

Rated Load (RL): 50, 100, 150, 200 t
Combined error: ±0.1 % RO
Creep (30 minutes): ±0.05 % RO
Safe overload: 100 % RL
Ultimate overload: >350 % RL
Ultimate sideload: 100 % RL
Material: Steel, zinc-plated
Degree of protection: IP67
Temperature range: -40 ÷ +150 °C
Storage temperature: -50 ÷ +180 °C
Temperature effect on zero balance: ±0.005 % RO/°C
Temperature effect on output: ±0.005 % RO/°C
Rated output RO: 1.0 mV/V
Insulation resistance: 2000 M Ohm
Output resistance: 700 ±10 Ohm
Recommended input: 10 Vdc/ac
Maximum supply voltage: 36 Vdc/ac
Input impedance: 750 ±15 Ohm
Weight: 40, 56, 87, 119 kg

Certifications

  • EAC
  • IECEx
