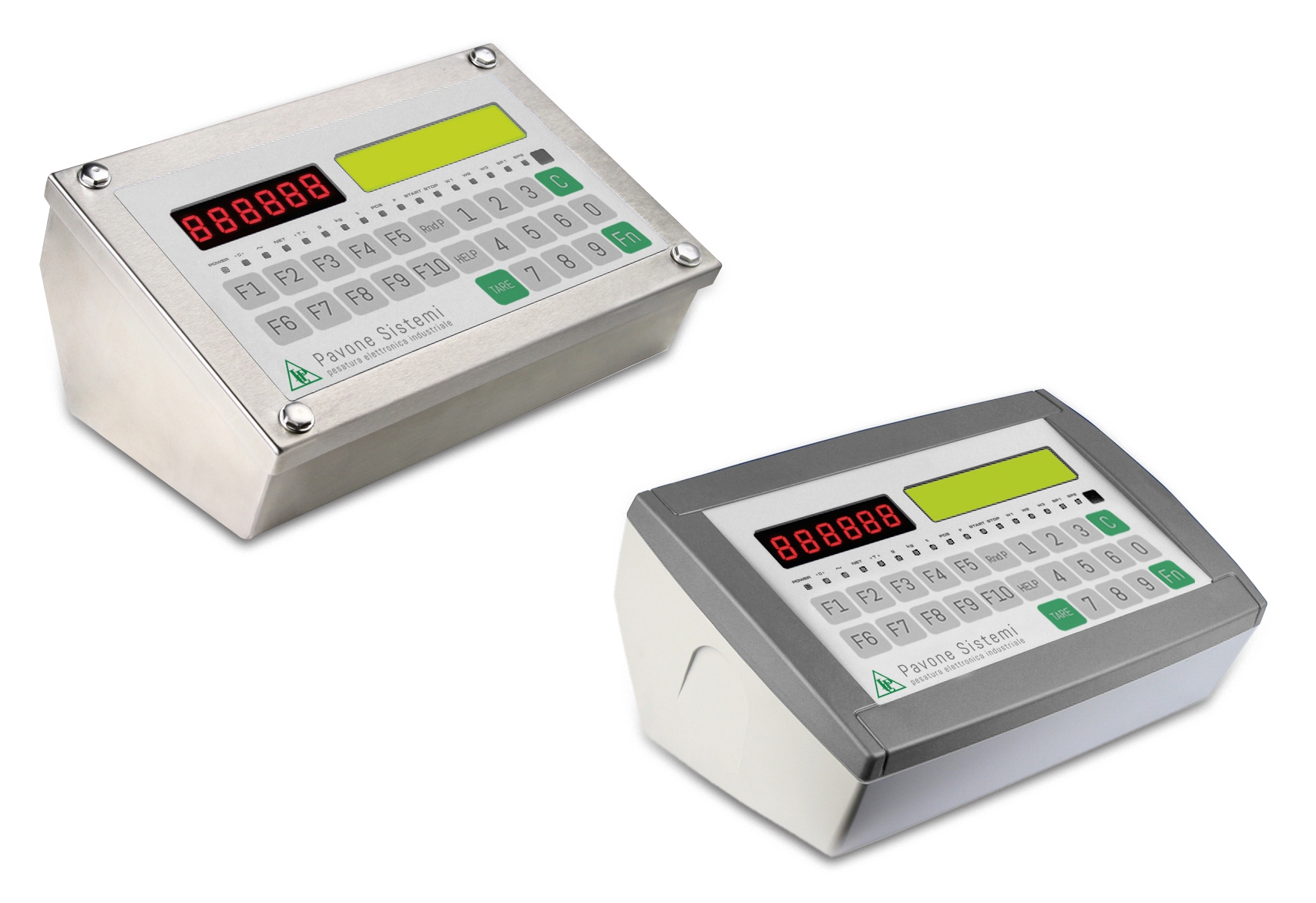

Weight Indicator PKD 2000

PKD 2000

The PKD 2000 weight indicator is versatile and suitable for all types of weighing in the industrial sector as it can be customized according to the purpose of use. The PKD 2000 weight indicator can connect up to 8 load cells and manage up to 4 independent scales. Calibration and linearization up to 8 points can be programmed directly from the digital keyboard or from a PC. PKD 2000 has 4 softwares that facilitate and complete the use of the weight indicator: AF01 (suitable for advanced weighting and formulation applications), AF02 (suitable for weighing applications, piece counting, data management and printing) AF04 ( suitable for advanced static control applications), AF05 (for advanced weight management, labeling and pricing). PWS: 20/2012

Further Information

Technical Specifications in PDF

Product code: -_-

Download

Technical Specifications

Measuring range: 0.6 ÷ 3.2 mV/V
Input sensitivity: 0.03 µV/count
A/D Converter: 24 bit
Trasducer input voltage: 5 Vdc ±5% 120 mA (max 8 cells 350 Ohm)
Divisions value (adjustable): > 800.000 counts
Temperature range: -10 ÷ +50 °C
Logic output: 4 outputs optoisolanti 48Vac / 0.15 A
Zero balance: ±50 % PN
Logic input: 2 opto-isolated inputs, 12 ÷ 24 Vdc, 20 mA
Serial port: 2 RS232, 1 RS485
Power supply: 100 ÷ 240 Vac 56 ÷ 60 Hz / 12 Vdc, internal power 6 Vdc by rechargeable battery
Conversion speed: 200 conversions per sec with an automatic selection
Power consumption: 16 VA

Certifications

  • EAC
  • OIML
