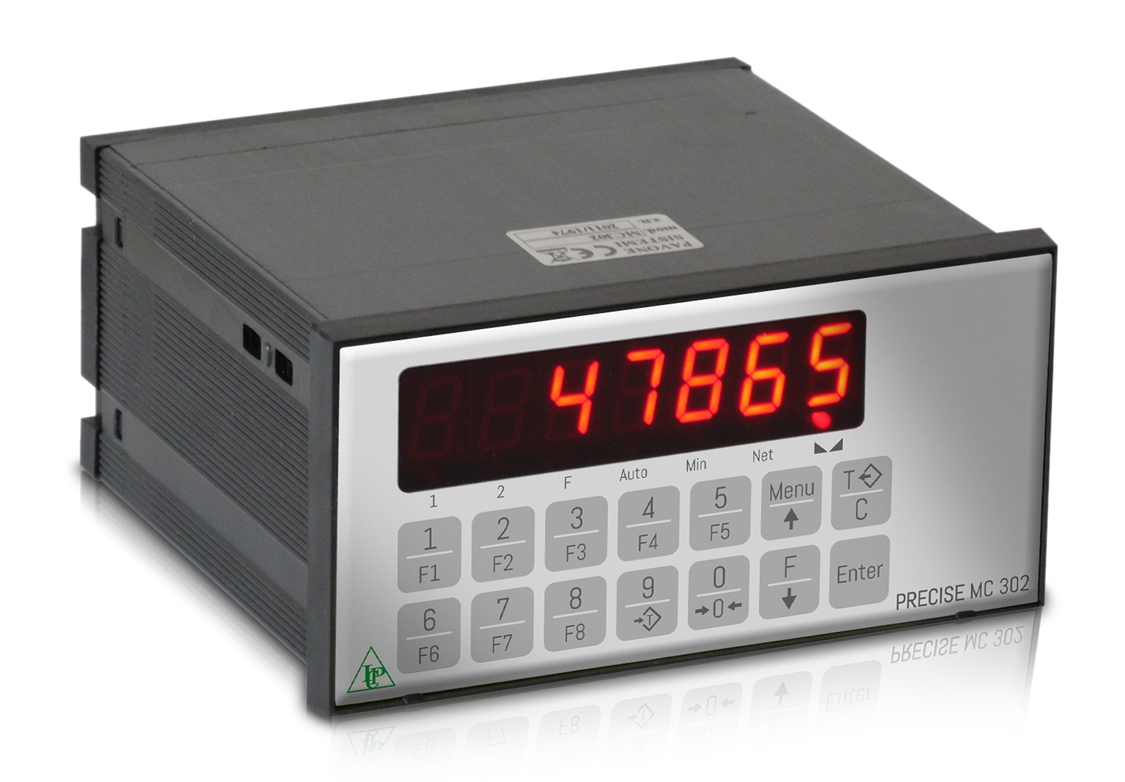

Weight Indicator MC 302

MC 302

The product MC 302 is a weight indicator that satisfies various needs in the weighing field, from the management of thresholds to dosage. It has an optional fiscal memory of up to 160,000 weighs and is able to store 50 different recipes that can be printed automatically. The MC 302 weight transmitter has the function of uploading and downloading for programming via TESTER 1008. The product can be customized to customer requirements.

Further Information

Technical Specifications in PDF

PVS: 20/2012

Download

Technical Specifications

Measuring range: -3.9 ÷ +3.9 mV/V
Input sensitivity: 0.02 µV/count
Full scale non-Linearity: < 0.01%
Gain drift: < 0.0003% FS/°C
A/D Converter: 24 bit
Internal Resolution: > 16.000.000 points
Trasducer input voltage: 5 V (max 8 load cells- 350 Ohm)
Visible resolution (in divisions): 600000
Divisions value (adjustable): x1, x2, x5
Decimal figures range: 0 ÷ 4
Temperature range: -10 ÷ +50 °C
Storage temperature: -20 ÷ +70°C
Filter: 0.2 ÷ 50 Hz. 100 Hz during dosage
Logic output: 6 outputs (NA) max 115 Vac /30 Vdc 0.5 A cad.
Logic input: 8 optoisolated 12 / 24 Vdc PNP
Serial port: COM1: RS232 half duplex COM2: RS422/RS485 half duplex
Power supply: 12 ÷ 24 Vdc -10% +15%; 15 VA
Regulatory compliance: EN45501 for Metrological Norms EN50081-1 and EN50082-2 EMC EN61010-1 for Electrical Safety
Baud rate: 1200 ÷ 115200 adjustable
Transmission distance: 15m (RS232C), 1000m (RS422; RS485)
Fieldbus: ASCII, Modbus RTU, Profibus DP, Devicenet and Ethernet TCP-IP external mounting on DIN guide
Power consumption: 230 Vac ±10% - 50/60 Hz absorbed power 7 VA (115 Vac on demand)
Weighing optional memory: > 160.000 weighed

Certifications

  • UL
  • GOST
  • EAC
  • OIML
